Key Specifications / Features

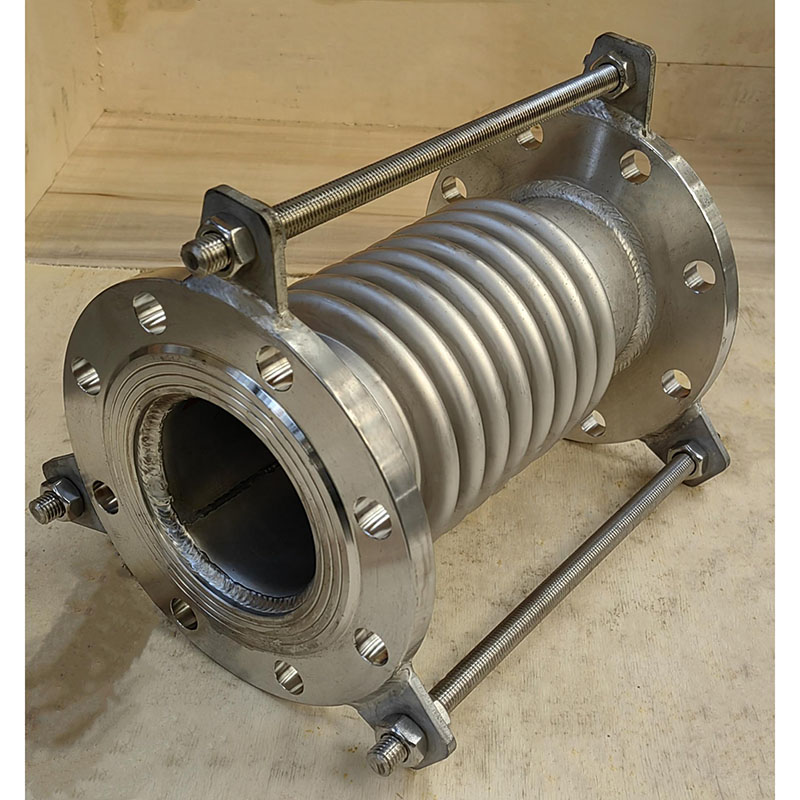

SS 310S Bellows Expansion Joint is a high-temperature flexible connector engineered for extreme thermal cycling in coal-fired boiler systems. Constructed from heat-resistant stainless steel SS 310S, it withstands sustained temperatures up to 1050°C while absorbing thermal expansion, vibration, and misalignment. The DN125 (5-inch) configuration with PN10 pressure rating and 400 mm axial length provides substantial movement compensation. Features raised face (RF) flanged ends for secure, leak-tight installation.
- Model No.: LD-20260331-PJ-01
- Hits: 0
- Categories: Joints
- Tags: Bellows Expansion Joint, SS 310S Expansion Joint, DN125 Expansion Joint
Detail Information
Product Name: SS 310S Bellows Expansion Joint
Type: Bellows Expansion Joint
Size: DN125
Pressure Rating: PN10
Length: 400 mm
Materials:
Flange: SS 310S
End Pipe: SS 310S
Bellow: SS 310S
Inner Sleeve: SS 310S
Tie Rod: SS 310S
End Connection: RF Flanged
Application: Coal-Fired Boiler Service
