Key Specifications / Features
We Provide Dismantling Joints, ISO 2531, EN 545, ASTM, PN10, PN16, PN25, PN40, PN64, Ductile Iron with FBE, NBR / EPDM Gaskets, and Epoxy Painting.
- Hits: 34
- Categories: Joints
- Tags: Dismantling Joints, PN10 Joint, PN16 Joint
Detail Information

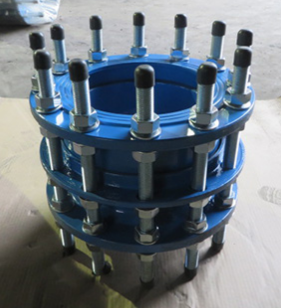

The dismantling joint suits all flanged piping materials above ground or in the chamber.
It enables easy installation and dismantling of isolating valves, non-return valves, flow metering equipment, pumps, etc. It compensates for the axial displacement of the pipe during installation.
Standard: ISO 2531, EN 545, ASTM
Pressure: PN10, PN16, PN25, PN40, PN64
Body material: Ductile iron with FBE (fusion bonded epoxy) coating or Epoxy painting;
Gaskets are NBR or EPDM
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8, G8.8, or SS 304/SS 316
Package: wooden cases and protection layer.
It enables easy installation and dismantling of isolating valves, non-return valves, flow metering equipment, pumps, etc. It compensates for the axial displacement of the pipe during installation.
Standard: ISO 2531, EN 545, ASTM
Pressure: PN10, PN16, PN25, PN40, PN64
Body material: Ductile iron with FBE (fusion bonded epoxy) coating or Epoxy painting;
Gaskets are NBR or EPDM
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8, G8.8, or SS 304/SS 316
Package: wooden cases and protection layer.
