Key Specifications / Features
Guided Wave Radar Level Transmitter Plant manufactures precision level measurement instruments featuring coaxial probe technology for reliable liquid and solid level detection. Constructed with ASTM A351 CF8M (SS 316) wetted parts, these 3-inch, Class 150 LB flanged transmitters offer superior corrosion resistance in aggressive media environments. The vertical mounting configuration with flat face flange design ensures accurate signal transmission and simplified installation on tanks and vessels.
- Model No.: LD-20260410-OT-02
- Hits: 0
- Categories: Other Tools
- Tags: Guided Wave Radar Level Transmitter, ASTM A351 CF8M Level Transmitter, SS 316 Level Transmitter
Detail Information

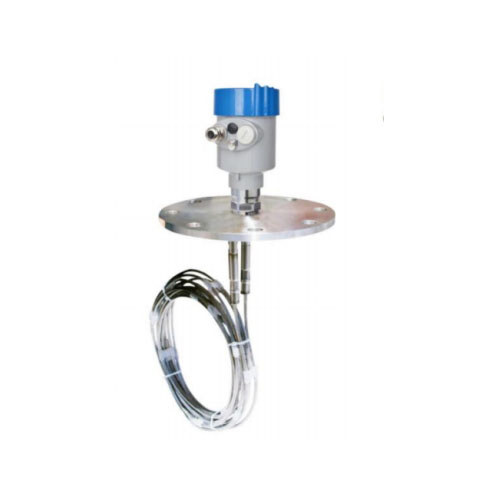

Product Name: Vertical Mounting Guided Wave Radar Level Transmitter
Probe Type: Coaxial Probe
Body Material: ASTM A351 CF8M
Probe Material: SS 316
Process Connection: 3 Inch
Pressure Rating: Class 150 LB, PN25
Flange Standard: ASME B16.5
End: Flat Face
Surface: Raw Facing
Mounting: Vertical
