Key Specifications / Features
China Inline Flow Switch Manufacturer produces rugged piston-type flow monitors engineered for reliable flow detection in industrial piping systems. Built from Stainless Steel 316 with ASTM A351 CF8M cast body construction, these 1-inch switches withstand corrosive media and high-pressure environments. The PN25 pressure rating and female threaded ends ensure secure, leak-free integration into process lines.
- Model No.: LD-20260410-OT-03
- Hits: 0
- Categories: Other Tools
- Tags: Inline Flow Switch, ASTM A351 CF8M Flow Switch, 1 Inch Flow Switch
Detail Information

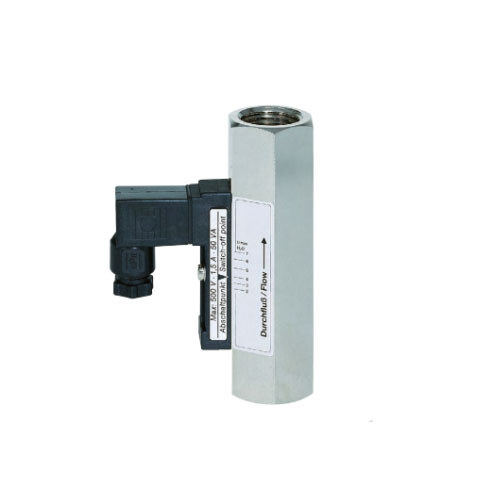

Product Name: Inline Flow Switch
Type: Piston / Flow Monitor Type
Body Material: Stainless Steel 316 / ASTM A351 CF8M
Process Connection Size: 1 Inch (Typical)
Connection: Female Threaded
Connection Standard: BSP or NPT (To be specified)
Electrical Connection: DIN 43650 Plug
Mounting: Inline Horizontal / Vertical
Pressure Rating: PN25 (Typical)
Wetted Parts: Stainless Steel 316
Surface Finish: As Machined
Application: Liquid Flow Detection
Operation: Lever
