Key Specifications / Features

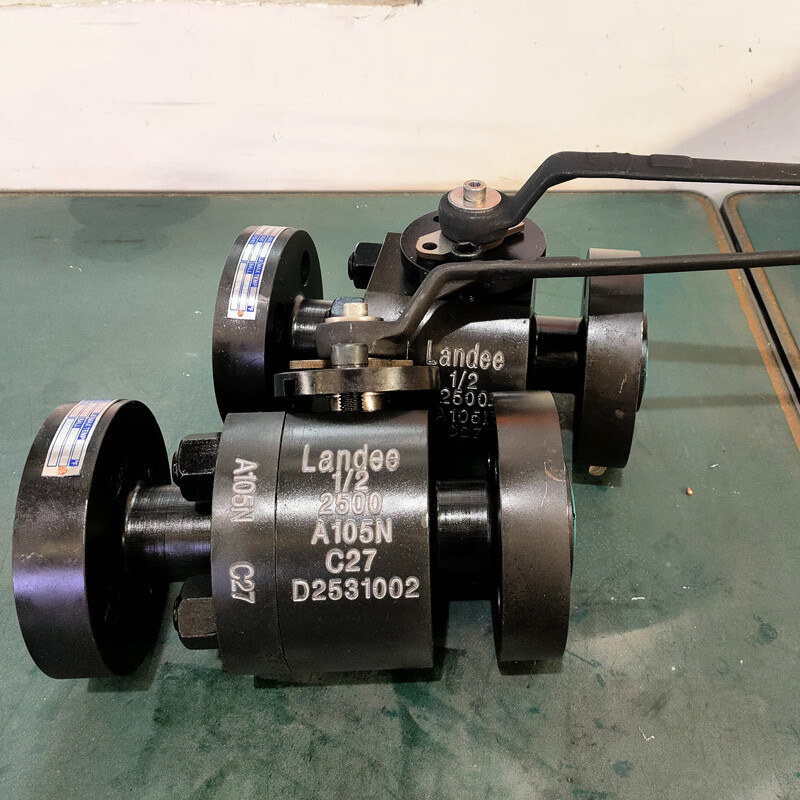

The 15 mm High Pressure Ball Valve is a compact, forged steel on/off isolation valve built for extreme pressure environments. Manufactured from ASTM A105N forged carbon steel body with ASTM A182 F304 stainless steel trim, it delivers superior mechanical strength and corrosion resistance. Designed for 1/2-inch (DN15) pipelines with Class 2500 LB (PN420) pressure rating, this valve features flanged end connections for secure installation in critical systems.
- Model No.: LD-20260420-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: High Pressure Ball Valve, 1/2 Inch Ball Valve, ASTM A105N Ball Valve
Detail Information
Product Name: High Pressure Forged Ball Valve
Type: Ball Valve
Body Material: ASTM A105N
Trim Material: ASTM A182 F304
Stem Material: ASTM A182 F6
Size: 1/2 Inch, DN15, 15 mm
Class Rating: Class 2500 LB, PN420
Test Standard: API 598
Connection: Flanged Ends
Brand: Landee
Type: Ball Valve
Body Material: ASTM A105N
Trim Material: ASTM A182 F304
Stem Material: ASTM A182 F6
Size: 1/2 Inch, DN15, 15 mm
Class Rating: Class 2500 LB, PN420
Test Standard: API 598
Connection: Flanged Ends
Brand: Landee
