Key Specifications / Features
This Chinese plant manufactures motorized trunnion mounted ball valves built to API 6D standards. The valves feature ASTM A350 LF2 or ASTM A352 LCB carbon steel bodies, sized at 12 inch by 10 inch with Class 300 LB pressure rating and flanged end connections. The trunnion design supports high-pressure pipeline applications by anchoring the ball at top and bottom, reducing seat wear and operating torque. Electric actuation enables remote flow control for oil, gas, and process industries.
- Model No.: LD-20260421-BAV-01
- Hits: 0
- Categories: Ball Valves
- Tags: Motorized Ball Valve, ASTM A350 LF2 Ball Valve, ASTM A352 LCB Ball Valve
Detail Information

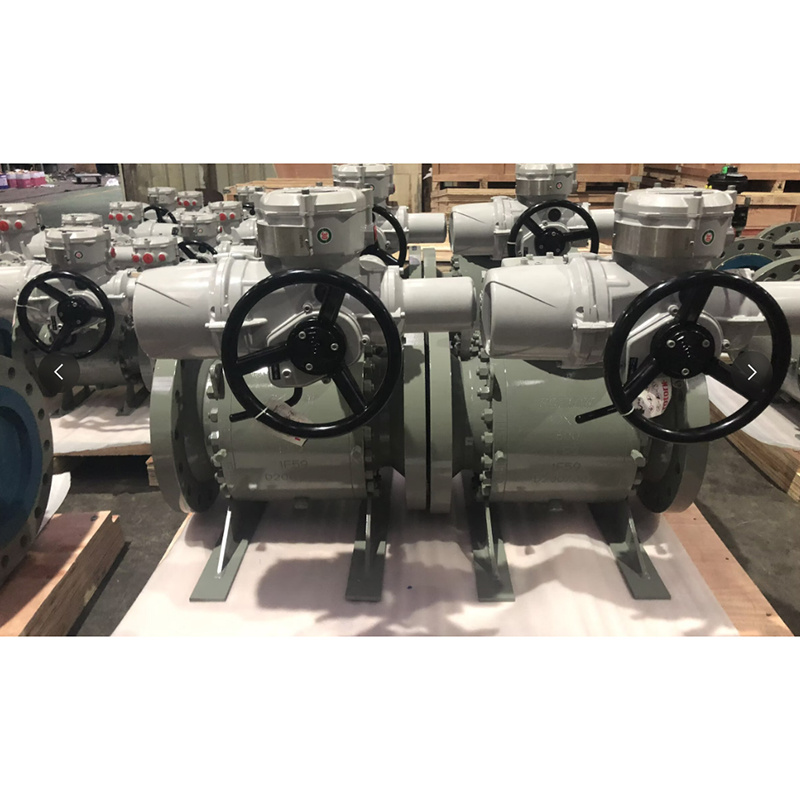

Product Name: Motorized Ball Valve
Type: Motorized/Electrical Actuator/Motor Operated Ball Valve (MOV)
Ball Design: Trunnion Mounted
Bore: Reduced Bore
Standard: API 6D
Size: 12 Inch * 10 Inch, DN300*DN250
Class Rating: Class 300 LB, PN50
Body Materials: ASTM A350 LF2 (Forged Low Temperature Carbon Steel); ASTM A352 LCB (Cast LTCS)
Ball Material: Stainless Steel SS 316
Stem Material: Stainless Steel SS 316
Seat Material: RPTFE
End Connection: Flanged Ends (ANSI B16.5, RF)
Operator: Rotork Gear Operator + ROTORK Electrical Actuator
Type: Motorized/Electrical Actuator/Motor Operated Ball Valve (MOV)
Ball Design: Trunnion Mounted
Bore: Reduced Bore
Standard: API 6D
Size: 12 Inch * 10 Inch, DN300*DN250
Class Rating: Class 300 LB, PN50
Body Materials: ASTM A350 LF2 (Forged Low Temperature Carbon Steel); ASTM A352 LCB (Cast LTCS)
Ball Material: Stainless Steel SS 316
Stem Material: Stainless Steel SS 316
Seat Material: RPTFE
End Connection: Flanged Ends (ANSI B16.5, RF)
Operator: Rotork Gear Operator + ROTORK Electrical Actuator
