Key Specifications / Features

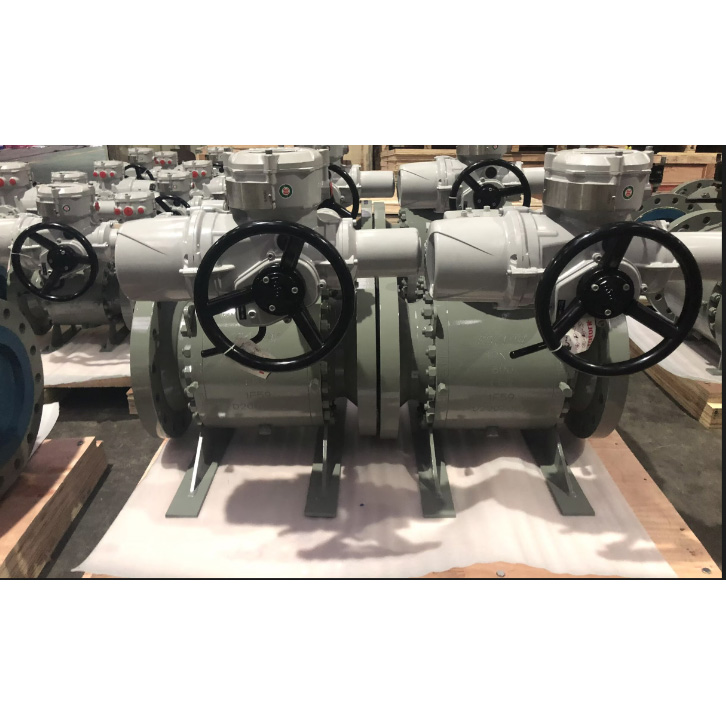

This China Motor Operated Ball Valve Plant specializes in manufacturing trunnion mounted ball valves engineered for critical pipeline applications. The featured product is a reduced bore configuration (10" × 8") built to API 6D standards, featuring an ASTM A350 LF2 forged steel body rated for Class 300 LB pressure conditions with flanged end connections. These motor-operated valves deliver reliable quarter-turn automation for oil and gas transmission systems.
- Model No.: LD-20260306-BAV-01
- Hits: 5
- Categories: Ball Valves
- Tags: Motor Operated Ball Valve, ASTM A350 LF2 Ball Valve, Reduced Bore Ball Valve
Detail Information
Product Name: Motor Operated/Motorized Ball Valve (MOV)
Type: MOV Ball Valve
Ball Design: Trunnion Mounted
Bore: Reduced Bore
Standard: API 6D
Size: 10 Inch * 8 Inch
Pressure Rating: Class 300 LB
Body Material: ASTM A350 LF2
Ball Material: Stainless Steel SS 316
Stem Material: Stainless Steel SS 316
Seat Material: RPTFE
End Connection: Flanged Ends, ANSI B16.5
Operator: Gear Operator + ROTORK Electrical Actuator
