Key Specifications / Features

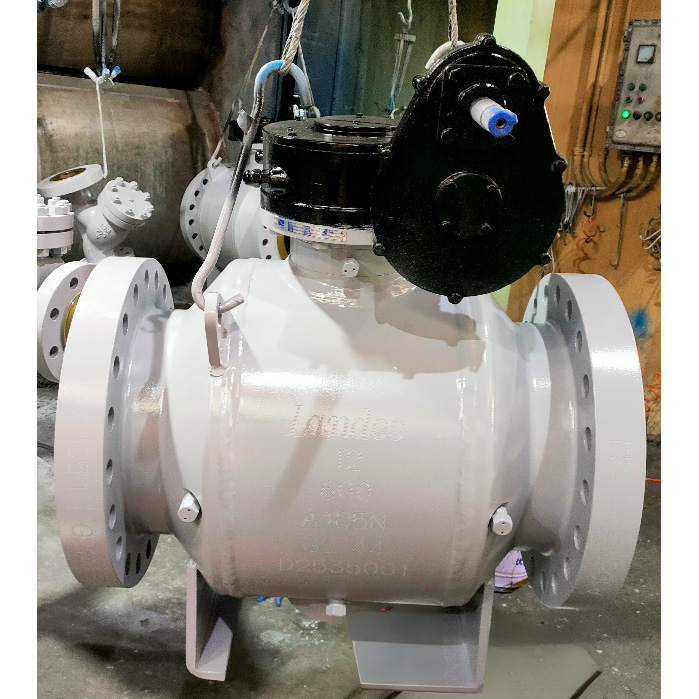

The 300 mm Fully Welded Ball Valve is a heavy-duty, maintenance-free isolation solution engineered for critical high-pressure applications up to 600 LB. Featuring a forged ASTM A105 carbon steel body for exceptional mechanical integrity, it utilizes an ASTM A182 F316 stainless steel ball for superior corrosion resistance and precise flow control. The PEEK seat delivers outstanding thermal stability, chemical resistance, and low friction for bubble-tight sealing under extreme conditions.
- Model No.: LD-20260312-BAV-01
- Hits: 12
- Categories: Ball Valves
- Tags: Fully Welded Ball Valve, 12 Inch Ball Valve, ASTM A105 Ball Valve
Detail Information
Product Name: Fully Welded Ball Valves
Type: Fully Welded Forged Ball Valve
Body Material: ASTM A105
Ball Material: ASTM A182 F316
Seat Material: PEEK
Size: 12 Inch, DN300, 300 mm
Pressure Rating: Class 600 LB, PN100
End Connection: RF Flanged
