Key Specifications / Features
The Micro Air Bleeding Valve is crafted from ASTM A536 Grade 65-45-12 for superior strength and durability. Available in sizes ranging from 1/2 inch to 1-1/2 inch, it operates at a pressure rating of 300 PSI. The valve features a fusion bonded epoxy coating for enhanced corrosion resistance, making it ideal for efficient air bleeding in compact and demanding applications.
- Model No.: LD-20241216-OV-02
- Hits: 29
- Categories: Other Valves
- Tags: Micro Air Bleed Valve, ASTM A536 65-45-12 Air Bleed Valve, 300 PSI Air Bleed Valve
Detail Information

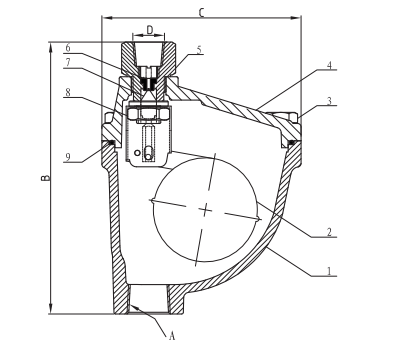

Product Item: Micro Air Bleeding Valve

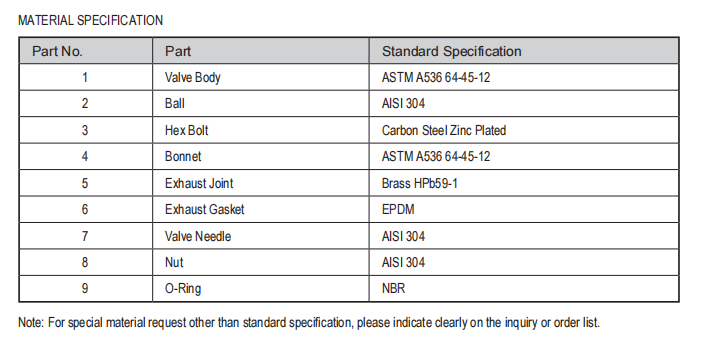

Body Material: ASTM A536 Grade 65-45-12

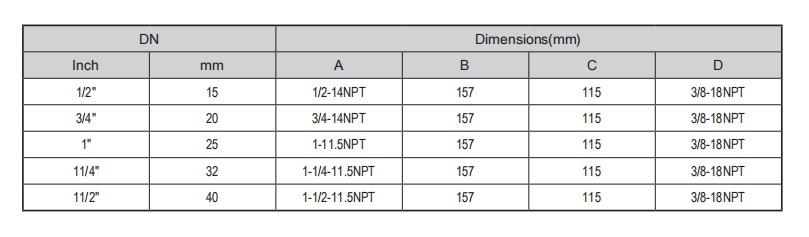

Size Range: 1/2 Inch to 1-1/2 Inch
Working Pressure: 300 PSI
Temperature Range: 0°C to 55°C
Connection Ends: ASME B1.20.1
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
