Key Specifications / Features
The Y-Type Hydraulic Control Valve is available in sizes ranging from 2 to 16 inches (DN50-DN400) and is rated for a working pressure of 300 PSI. Designed with flanged ends for secure installation, the valve ensures efficient flow control in hydraulic systems. It is tested according to API 598 standards, ensuring high quality and reliability. The direct-flow design minimizes pressure loss.
- Model No.: LD-20250210-OV-01
- Hits: 16
- Categories: Other Valves
- Tags: Y-Type Control Valve, Hydraulic Control Valve, 300 PSI Control Valve
Detail Information

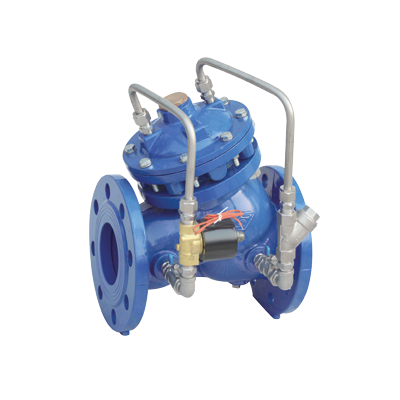

Product Item: Y-Type Hydraulic Control Valve
Basic Valve: Y-Type Direct-Flow
Size Range: 2-16 Inch, DN50-DN400
Working Pressure: 300 PSI
Connection Ends: Flanged, ASME B16.1 Class 125 LB
Temperature Range: 0°C to 80°C
Testing Standard: API 598
