Key Specifications / Features
The Stainless Steel Sanitary Clamps Supplier offers a wide range of high-quality sanitary clamps, ferrules, and adapters designed for precision and reliability in sanitary applications. These products are crafted from durable stainless steel grades, including ASTM A182 F304/304L/316/316L, ensuring corrosion resistance and durability. Available in sizes from 1/2 to 10 inches, they comply with international standards such as ASME BPE, DIN, SMS, 3A, and ISO.
- Model No.: LD-20260105-SPM-03
- Hits: 15
- Categories: Sanitary Piping Materials, Other Fittings
- Tags: Sanitary Clamp, Stainless Steel Clamp, ASTM A182 F304 Clamp
Detail Information

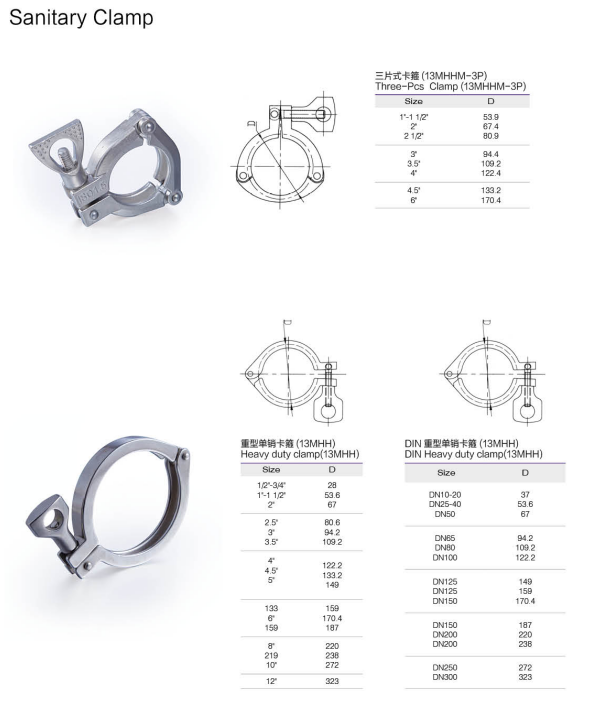

Product Name: Sanitary Clamps, Stainless Steel Clamp Fittings

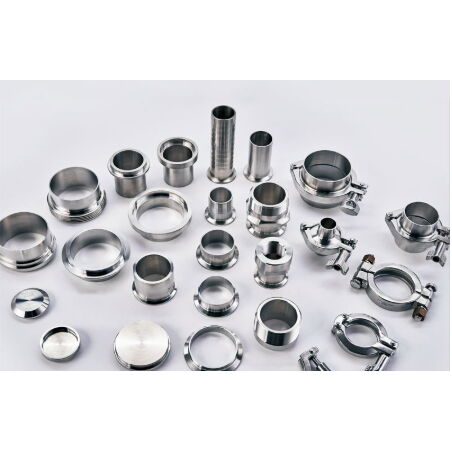

Types: Clamp, Ferrule, Adapter
Standards: ASME BPE, DIN, SMS, 3A, RJT, IDF, ISO
Sizes: 1/2–10 Inch (DN15–DN250)
Outside Diameter: 17.2–273 mm
Material (Medium Contact Parts): SS ASTM A182 F304 / 304L / 316 / 316L (Forged)
Seal Materials: EPDM, Silicone, NBR
Working Temperature: -10°C to 150°C (EPDM), -20°C to 120°C (Silicone)
Surface Finish: Inner <0.8 µm, Outer <1.6 µm
Applications: Milk, Juice, Beer, Beverage, Pharmacy, etc
