Key Specifications / Features
The Stainless Steel Sanitary Unions Manufacturer specializes in producing high-quality sanitary unions designed for precision and reliability in sanitary applications. These unions are crafted from durable stainless steel grades, including ASTM A182 F304, F304L, F316, and F316L, ensuring corrosion resistance and durability. They are available in sizes ranging from 1/2 to 10 inches and comply with international standards such as DIN, 3A, and ISO. The unions feature EPDM, silicone, and NBR seals.
- Model No.: LD-20260105-SPM-04
- Hits: 10
- Categories: Sanitary Piping Materials, Other Fittings
- Tags: Sanitary Pipe Union, Stainless Steel Pipe Union, ASTM A182 F304 Pipe Union
Detail Information

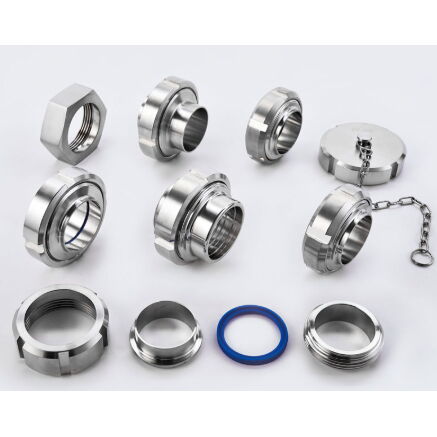

Product Name: Stainless Steel Sanitary Unions

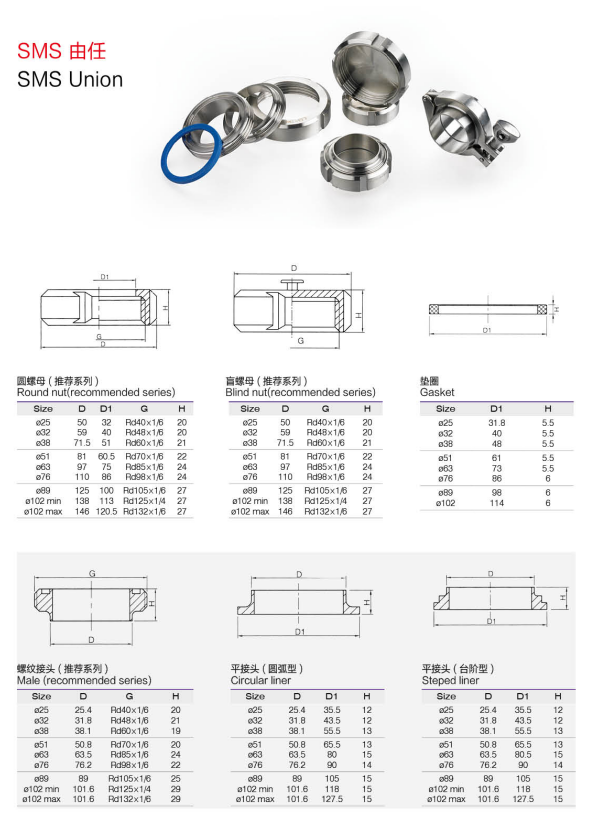

Types: Nut, Male, Liner, Expanding Male, Blind Nut
Standards: DIN, SMS, 3A, RJT, IDF, ISO
Sizes: 1/2–10 Inch (DN15–DN250)
Outside Diameter: 17.2–273 mm
Material: ASTM A182 F304 / 304L / 316 / 316L (Forged)
Seal Materials: EPDM, Silicone, NBR
Working Temperature: -10°C to 150°C (EPDM), -20°C to 120°C (Silicone)
Surface Finish: Inner <0.8 µm, Outer <1.6 µm
Applications: Milk, Juice, Beer, Beverage, Pharmacy, etc
