Key Specifications / Features
UPVC Handle Type Butterfly Valve Supplier: UPVC Butterfly Valves, 2-1/2 Inch - 8 Inch, ANSI, DIN, JIS, CNS Flange, 150 PSI.
- Hits: 67
- Categories: Butterfly Valves, Plastic Valves
- Tags: 2-1/2 Inch Butterfly Valve, 8 Inch Butterfly Valve, DN65 Butterfly Valve
Detail Information
UPVC Handle Type Butterfly Valve
Material: UPVC
Type: Handle Type
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI

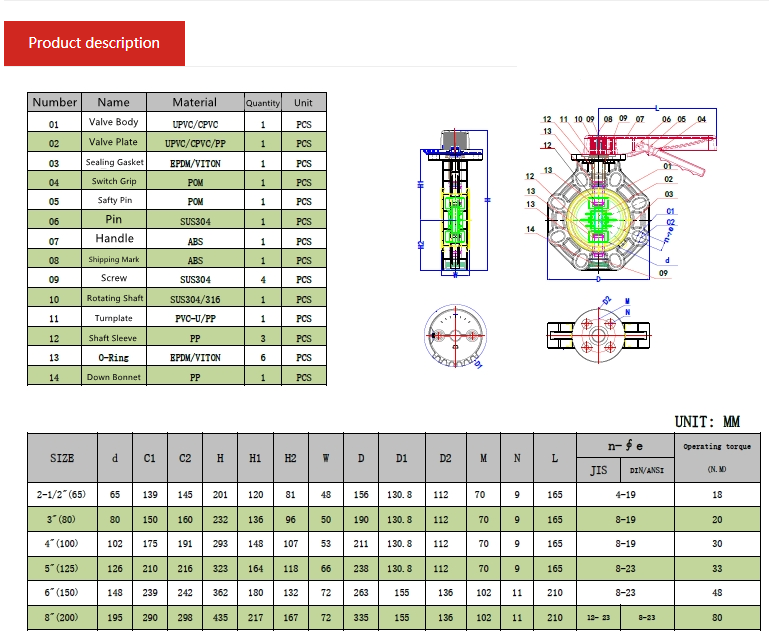

Components: UPVC, CPVC Valve Body; UPVC, CPVC, PP Valve Plate; EPDM, VITON Gasket; POM Grip; POM Safety Pin; SUS 304 Pin; ABS Handle; ABS Shipping Mark; SUS 304 Nuts; SUS 304, SUS 316 Rotating Shaft; PVC-U, PP Turnplate; PP Shaft Sleeve; EPDM, VITON O-Ring; PP Down Bonnet
Material: UPVC
Type: Handle Type
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI
Components: UPVC, CPVC Valve Body; UPVC, CPVC, PP Valve Plate; EPDM, VITON Gasket; POM Grip; POM Safety Pin; SUS 304 Pin; ABS Handle; ABS Shipping Mark; SUS 304 Nuts; SUS 304, SUS 316 Rotating Shaft; PVC-U, PP Turnplate; PP Shaft Sleeve; EPDM, VITON O-Ring; PP Down Bonnet
