Key Specifications / Features
UPVC Pneumatic Actuated Butterfly Valve Supplier: UPVC Pneumatic Butterfly Valves, 2-1/2-8 Inch, DN65-DN200, 150 PSI, ANSI, DIN, JIS, CNS, Flanged.
- Hits: 35
- Categories: Butterfly Valves, Plastic Valves
- Tags: UPVC Butterfly Valve, CPVC Butterfly Valve, 2-1/2 Inch Butterfly Valve
Detail Information
UPVC Pneumatic Actuated Butterfly Valve
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI

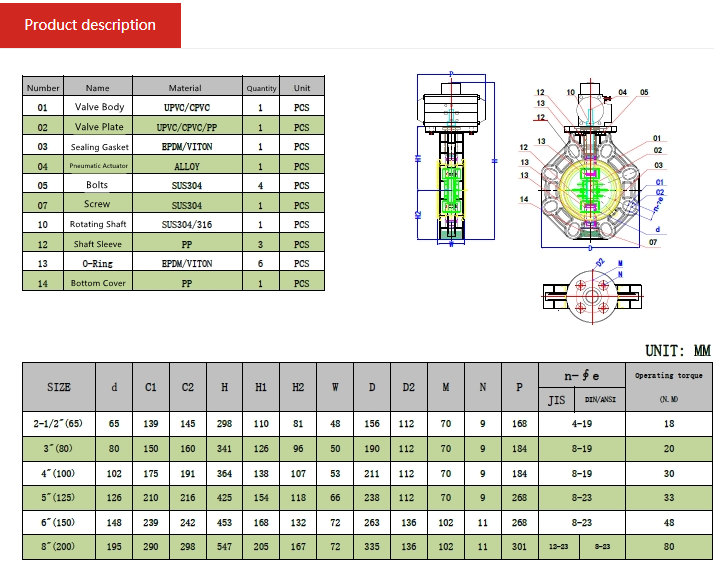

Component: UPVC, CPVC valve body; UPVC, CPVC, PP valve plate; EPDM, VITON sealing gasket; Alloy pneumatic actuator; SUS 304 bolts; SUS 304 screw; SUS 304, SUS 316 rotating shaft; PP shaft sleeves; EPDM, VITON O-Rings; PP bottom cover
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI
Component: UPVC, CPVC valve body; UPVC, CPVC, PP valve plate; EPDM, VITON sealing gasket; Alloy pneumatic actuator; SUS 304 bolts; SUS 304 screw; SUS 304, SUS 316 rotating shaft; PP shaft sleeves; EPDM, VITON O-Rings; PP bottom cover
