Key Specifications / Features

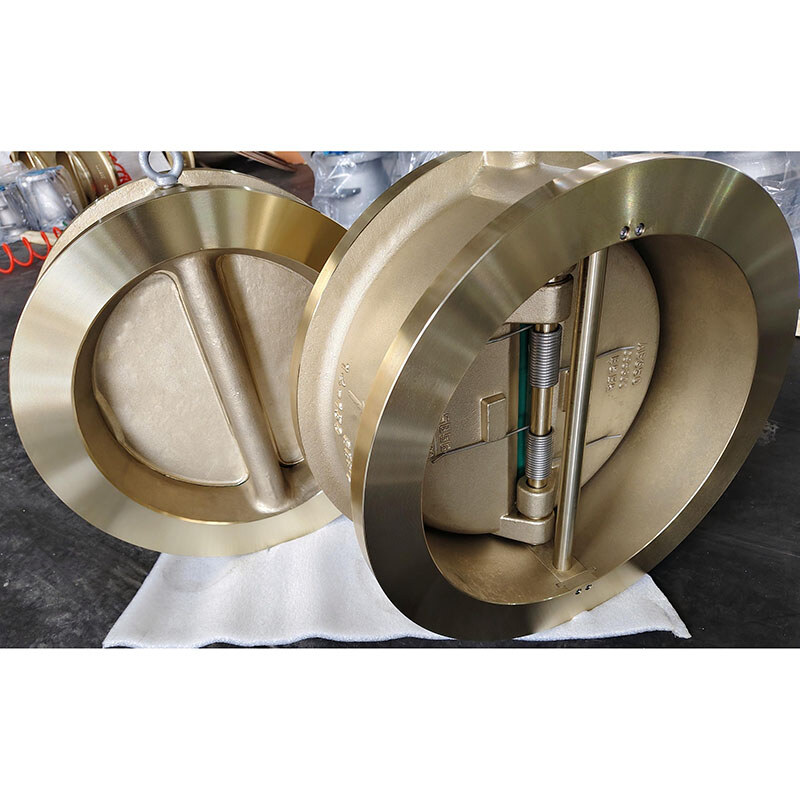

This dual plate check valve features a wafer-style design for compact installation between flanges. It has a 350 mm (14 inch) size and Class 150 LB pressure rating. The body and disc are cast from ASTM B148 C95800 nickel-aluminum bronze for superior corrosion resistance. The seat is Viton, providing reliable sealing in demanding conditions. This valve is engineered specifically for sea water services. The dual plate configuration offers quick response and low cracking pressure.
- Model No.: LD-20260528-CV-01
- Hits: 0
- Categories: Check Valves
- Tags: ASTM B148 C95800 Check Valve, Dual Plate Check Valve, 14 Inch Check Valve
Detail Information
Product Name: API 594 Dual Plate Check Valves
Type: Dual Plate Wafer Check Valve
Design Standard: API 594
Size: 14 Inch, DN350, 350 mm
Pressure Rating: Class 150 LB, PN20
Body Material: ASTM B148 C95800
Disc Material: ASTM B148 C95800
Pin Material: ASTM B150 C63200
Spring Material: Inconel X-750
Seat Material: Viton
Pressure Test: API 598
Pressure-Temperature Rating: ASME B16.24
Service: Sea Water
Type: Dual Plate Wafer Check Valve
Design Standard: API 594
Size: 14 Inch, DN350, 350 mm
Pressure Rating: Class 150 LB, PN20
Body Material: ASTM B148 C95800
Disc Material: ASTM B148 C95800
Pin Material: ASTM B150 C63200
Spring Material: Inconel X-750
Seat Material: Viton
Pressure Test: API 598
Pressure-Temperature Rating: ASME B16.24
Service: Sea Water
