Key Specifications / Features

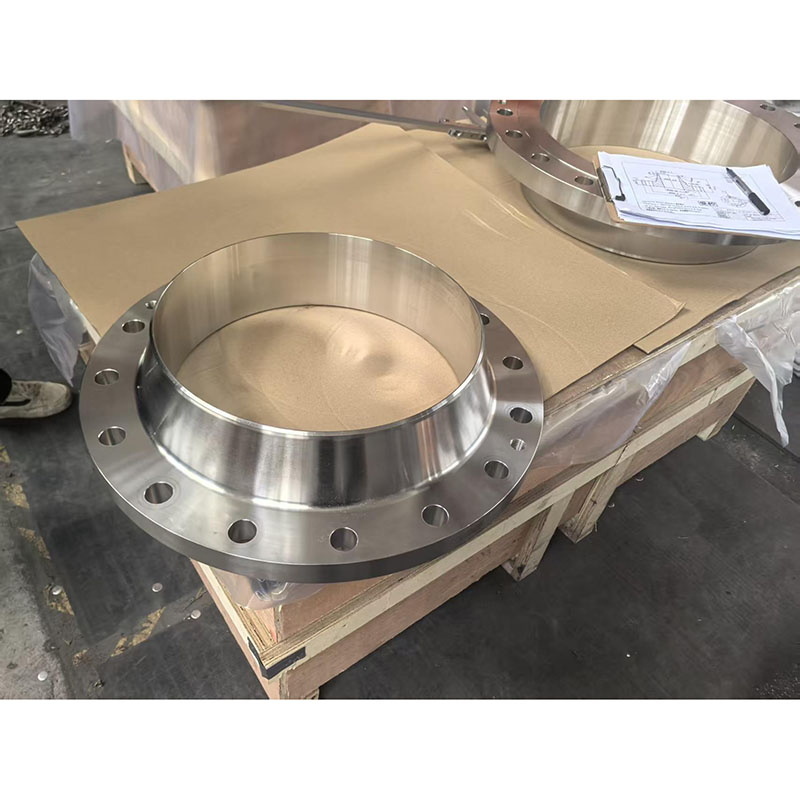

This WN flange includes a jack screw. It is supplied by an ASTM A182 F304L weld neck flange supplier. The design follows ASME B16.5 standards. It is forged from stainless steel. The nominal size is 16 inches. The pressure rating is Class 150 LB. The wall schedule is SCH 10S. The sealing surface is flat face. This flange suits low-pressure piping systems. The F304L material resists corrosion. The jack screw aids alignment and separation during installation.
- Model No.: LD-20260525-WNF-02
- Hits: 0
- Categories: Weld Neck Flanges
- Tags: 16 Inch Weld Neck Flange, ASME B16.5 Weld Neck Flange, ASTM A182 F304L Weld Neck Flange
Detail Information
Product Name: ASTM A182 F304L Weld Neck Flange
Type: Weld Neck (WN) Flange
Standard: ASME B16.5
Material: ASTM A182 F304L
Size: 16 Inch
Class Rating: Class 150 LB
Wall Thickness: SCH 10S
Face Type: Flat Face (FF)
Special Requirement: with Jack Screw
Jack Screw Size: 3/4 Inch–10 UNC
