Key Specifications / Features
This ASME B16.5-compliant weld neck flange is constructed from ASTM A182 F304L stainless steel, offering excellent corrosion resistance for demanding service. Designed for 20-inch Schedule 10S pipe, the Class 150 LB flange features a raised face for reliable gasket sealing and includes a specialized jack screw for safer, easier disassembly during maintenance. Its forged weld neck design ensures superior structural integrity and optimal stress distribution.
- Model No.: LD-20260211-WNF-01
- Hits: 1
- Categories: Weld Neck Flanges
- Tags: 20 Inch Weld Neck Flange, ASTM A182 F304L Weld Neck Flange, ASME B16.5 Weld Neck Flange
Detail Information

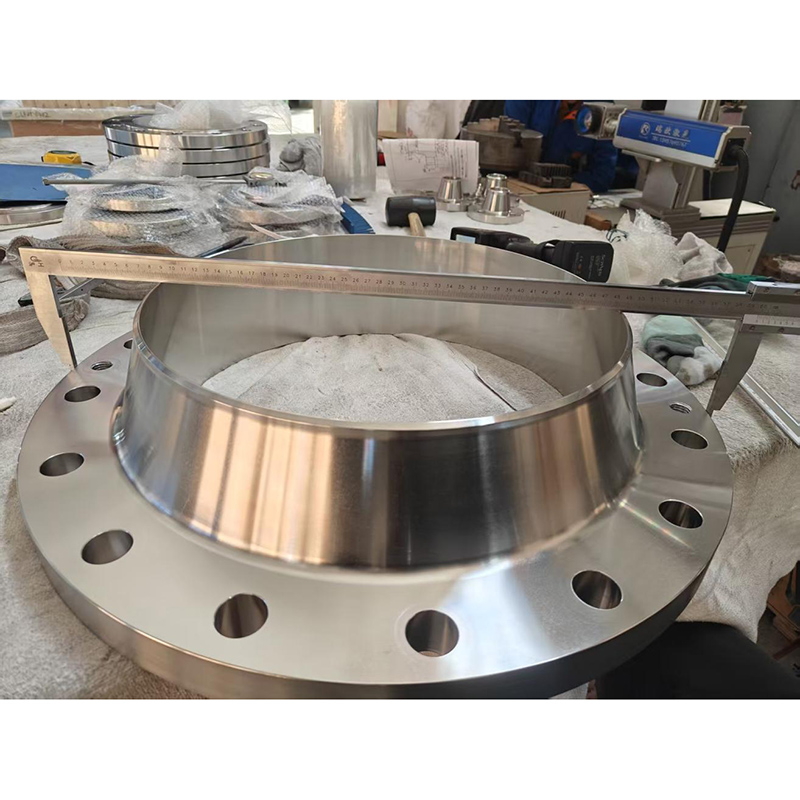

Product Name: Weld Neck Flange with Jack Screw
Type: Welding Neck Flange (WN Flange)
Standard: ASME B16.5
Material: ASTM A182 F304L
Size: 20 Inch
Pressure: Class 150 LB
Wall Thickness: SCH 10S
Face Type: Raised Face (RF)
Other Feature: With Jack Screw (as per client’s data, 3/4 Inch-10 UNC)
