Key Specifications / Features

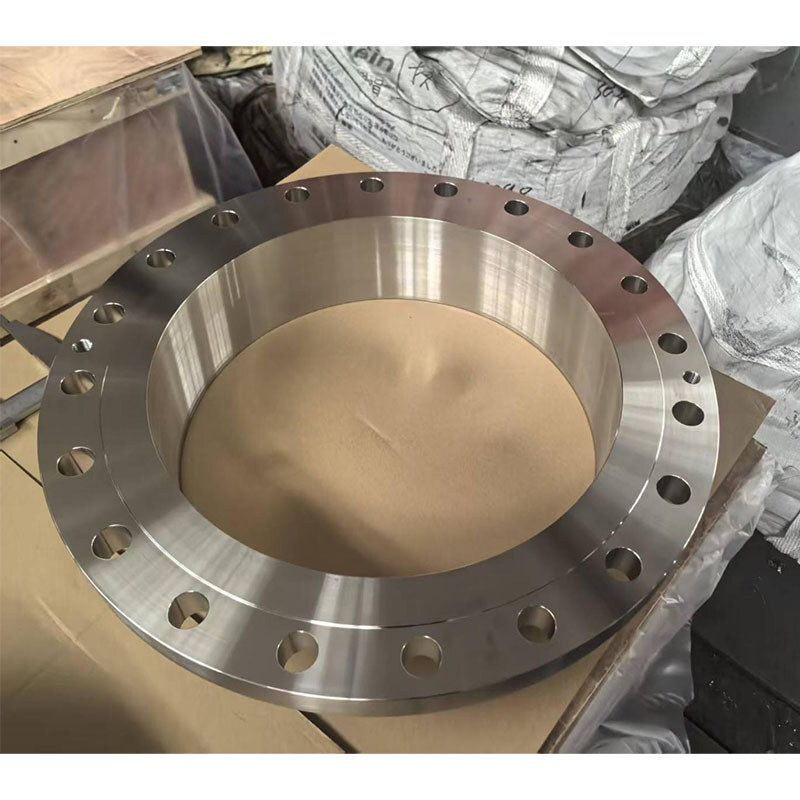

This weld neck flange includes a jack screw. It is manufactured by a stainless steel weld neck flange factory. The design follows ASME B16.5 standards. The material is ASTM A182 F304L stainless steel. The nominal size is 20 inches. The pressure class is 150 LB. The wall schedule is SCH 10S. The sealing surface is raised face. This flange provides a strong, long-neck butt weld connection. It suits low-pressure piping systems. The jack screw assists with alignment and separation during installation or maintenance.
- Model No.: LD-20260525-WNF-01
- Hits: 0
- Categories: Weld Neck Flanges
- Tags: 20 Inch Weld Neck Flange, ASTM A182 F304L Weld Neck Flange, ASME B16.5 Weld Neck Flange
Detail Information
Product Name: Weld Neck Flange with Jack Screw
Type: Weld Neck (WN) Flange
Standard: ASME B16.5
Material: ASTM A182 F304L
Size: 20 Inch
Class Rating: Class 150 LB
Wall Thickness: SCH 10S
Face Type: Raised Face (RF)
Special Requirement: with Jack Screw
Jack Screw Size: 3/4 Inch–10 UNC
