Key Specifications / Features
The End-Suction Centrifugal Pump is a high-performance, horizontal, single-stage pump designed to meet BS EN 733/DIN 24255 standards. It offers a versatile flow range from 2 to 1440 m³/h and a head range of 2 to 152 meters, making it suitable for various industrial applications. Constructed from durable cast or ductile iron, with stainless steel options available for enhanced corrosion resistance, this pump ensures reliable operation in demanding environments.
- Model No.: LD-20250305-PM-01
- Hits: 62
- Categories: Pumps
- Tags: End-Suction Centrifugal Pump, Horizontal Centrifugal Pump, Single Stage Centrifugal Pump
Detail Information

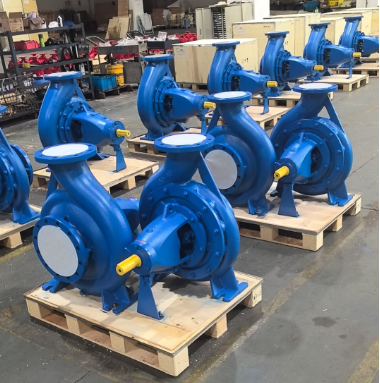

Product Item: Horizontal Single-Stage End-Suction Centrifugal Pump
Design Standard: BS EN 733 / DIN 24255
Size: Inlet: 50–300 mm, Outlet: 32–300 mm
Flange Standard: DIN 2501 / ANSI B16.5
Casing Material: Cast Iron, Ductile Iron, Stainless Steel
Impeller Material: Bronze, Cast Steel, Stainless Steel
Shaft Material: SS 420, SS 304, SS 316, AISI 1045
Working Pressure: 1.0 MPa / 1.6 MPa
Temperature Range: -10°C to 105°C
Head: 2–152 m
Flow Rate: 2–1440 m³/h
Applications: End suction centrifugal pumps are designed with technical benefits to meet the needs of users in a variety of applications like city water supply, fire fighting, irrigation and cooling.
