Key Specifications / Features
The China Self-Priming Sewage Pump Factory offers a high-performance solution for sewage and wastewater applications. With a size range of 40–250 mm and a pressure rating of 1.6 MPa, it handles flow rates from 4 to 750 m³/h and head ranges between 40 to 60 meters. This horizontal, axial end suction pump features a single-stage, single-suction design, ensuring efficient self-priming operation. Ideal for sewage treatment and drainage systems, it delivers reliable, robust performance in demanding environments.
- Model No.: LD-20250306-PM-02
- Hits: 38
- Categories: Pumps
- Tags: Self-Priming Pump, Sewage Pump, Single-Stage Pump
Detail Information

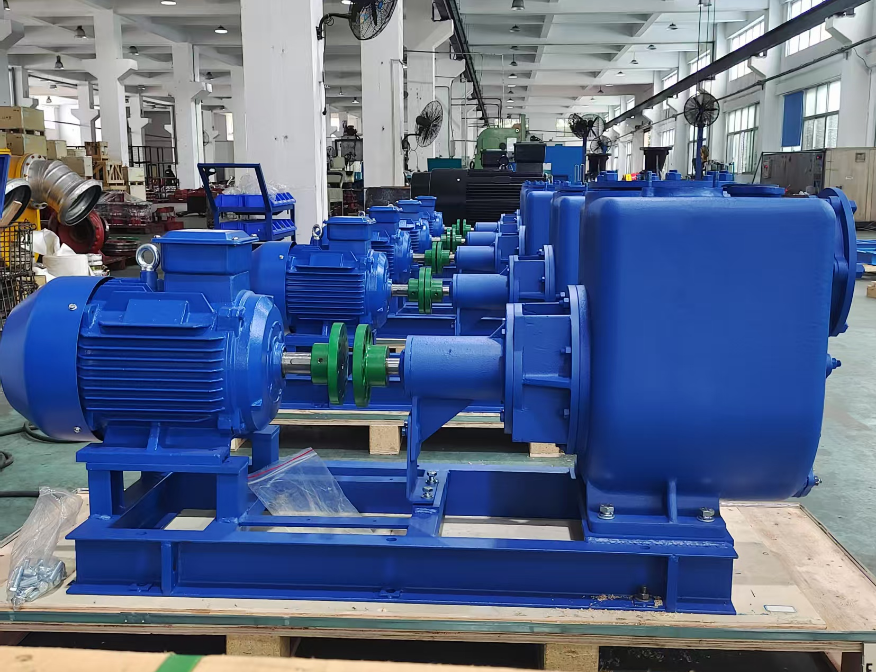

Product Item: Self-Priming Sewage Pump
Structure: Semi-Open Impeller, Horizontal, Axial End Suction, Single-Stage, Single-Suction, Self-Priming
Design Standard: Performance and dimensions refer to European standards
Size: 40–200 mm (Inlet & Outlet)
Flow Rate: 4–480 m³/h
Head Range: 2–40 m
Flange Standard: DIN 2501, GB/T 17241.6 (ANSI, JIS, ASME optional)
Materials:
Casing: Cast Iron, Ductile Iron
Impeller: Bronze, Cast Steel, Stainless Steel
Shaft: ASTM 1045, ASTM 304, ASTM 316, ASTM 420 (Optional)
Working Pressure: 1.6 Mpa (standard); 2.5 Mpa (special request)
Operating Temperature: -15°C to 85°C
Features
- Self-priming sewage pumps are equipped with an advanced Maintenance Hole and Wear Plate.
- They can transfer liquids containing sand, particles, and solids in suspension, offering superior performance and ease of maintenance.
Applications
- Wastewater Treatment Plants
- Portable Emergency Firefighting
- Marine Applications (Ballasting & Bilge)
- Liquid Transfer: Handling liquids with sand, particles, and suspended solids
