Key Specifications / Features
The Vertical Inline Pump Manufacturer offers a high-quality solution with compliance to BS EN 733/DIN 24255 standards. Featuring an inlet size range of 40–200 mm, this single-stage, single-suction pump handles flow rates from 4 to 400 m³/h and a head range of 2 to 150 meters. Constructed from durable cast/ductile iron, it is built for reliable, efficient operation in a variety of industrial applications, ensuring optimal performance in vertical inline pumping systems.
- Model No.: LD-20250306-PM-03
- Hits: 39
- Categories: Pumps
- Tags: Vertical Pump, Inline Pump, Single-Suction Pump
Detail Information

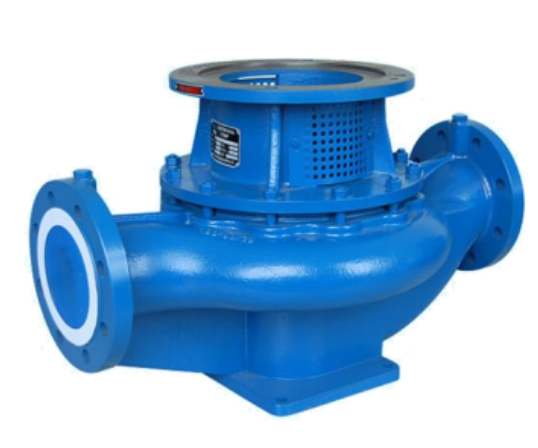

Product Item: Vertical Inline Pump
Structure: Vertical, Single-Stage, Single-Suction, Volute, Casing, In-Line Design
Design Standard: BS EN 733 / DIN 24255
Size: 40–200 mm (Inlet)
Head Range: 2–150 m
Flow Rate: 4–400 m³/h
Materials:
Casing: Cast Iron, Ductile Iron
Impeller: Bronze, Cast Steel, Stainless Steel
Shaft: ASTM 1045, ASTM 304, ASTM 316, ASTM 420 (Optional)
Working Pressure: 1.6 MPa (Standard)
Flange Standard: DIN 2501 / ANSI B16.5
Operating Temperature: -10°C to 105°C
Features
- Vertical inline pumps feature a vertical, close-coupled design for space-saving installation, meeting the needs of users in various cold and hot water circulation applications, including civil and general industrial use.
- They are driven by an IEC standard motor and require minimal installation space.
Applications
- Heating, Ventilation & Air Conditioning (HVAC)
- Fire Protection & Firefighting
- Water Circulation & Liquid Transfer
- Irrigation Systems
- Cooling & Booster Services
