In modern industry, pipeline systems are ubiquitous, functioning like the blood vessels of the human body, responsible for transporting various liquids and gases. However, these systems face numerous challenges, such as temperature fluctuations, pressure variations, and mechanical vibrations, all of which can cause pipeline deformation, rupture, or even safety accidents. Fortunately, there is a remarkable device, the expansion joint, which acts as the elastic guardian of pipelines, effectively addressing these challenges and ensuring the safe and stable operation of pipeline systems.
The term "expansion joint" may sound unfamiliar, but you've likely heard its other names, such as compensator, bellows, or bellows compensator. It is a compensation device that uses the elastic deformation of bellows to absorb dimensional changes in pipelines, conduits, or containers caused by thermal expansion and contraction, and belongs to a type of compensating element. Simply put, an expansion joint functions like a "spring" in the pipeline system: when the pipeline expands or contracts due to temperature changes, the expansion joint absorbs these displacements through its own deformation, protecting the pipeline from damage.
Expansion joints can absorb axial, lateral, and angular displacements and are widely used in pipelines, equipment, and systems to accommodate thermal movement, absorb mechanical vibrations, and reduce noise. Their operation is based on the flexibility and elasticity of metallic materials. When a pipeline undergoes deformation due to various factors, the expansion joint absorbs the resulting displacement, ensuring the safe and stable operation of the pipeline system.
Expansion joints come in a variety of types, which can be categorized based on application scenarios and requirements. Some common types and their features are as follows:
Bellows expansion joints are the most common type. Their core component is the bellows, an elastic element with a corrugated shape that achieves the joint's function through its expansion and bending. Bellows expansion joints can be classified into axial, lateral, and angular types, each catering to different displacement compensation needs.
Axial Bellows Expansion Joint: This type primarily compensates for axial expansion and contraction of pipelines. It expands and contracts along the pipeline axis, suitable for thermal expansion compensation caused by temperature changes. For instance, in chemical pipelines, axial bellows expansion joints effectively absorb thermal expansion and contraction, protecting the pipeline from damage.
Lateral Bellows Expansion Joint: This type compensates for lateral displacement of pipelines, allowing movement perpendicular to the axis. It is suitable for lateral displacement caused by mechanical vibrations or foundation settlement. For example, in large building water supply and drainage pipelines, lateral bellows expansion joints absorb lateral displacements caused by building vibrations or ground settlement, ensuring system stability.
Angular Bellows Expansion Joint: This type compensates for angular displacement, allowing pipelines to move within a certain angle. It is suitable for angular displacement caused by installation errors or mechanical vibrations. In complex pipeline systems, angular bellows expansion joints absorb these movements, ensuring safe operation.
Metal expansion joints are another common type, made primarily from metal materials with high strength, high-temperature resistance, and corrosion resistance. Their working principle is similar to bellows expansion joints, using the expansion and bending of metal bellows to compensate for displacement. Metal expansion joints are widely used in chemical, steel, cement, and boiler industries and are essential components in pipeline systems.
Key performance parameters include nominal diameter, pressure rating, compensation capacity, and stiffness. Nominal diameter determines the pipeline size compatibility; pressure rating measures its ability to withstand pressure; compensation capacity reflects the maximum displacement it can absorb; and stiffness affects its stress characteristics during deformation. When selecting a metal expansion joint, users should match performance parameters with pipeline operating conditions, including temperature, pressure, and displacement.

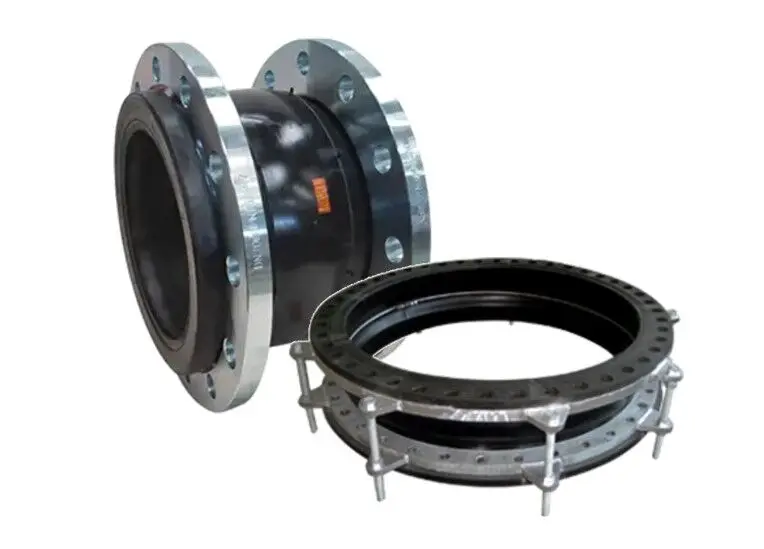

Rubber compensators are highly elastic, airtight, and resistant to various media and environmental conditions. They consist of tubular rubber layers reinforced with fabric and steel rings, vulcanized and combined with metal flanges or loose couplings. Their main function is to reduce vibration and noise while compensating for thermal expansion and contraction, making them widely applicable in various pipeline systems.
Rubber compensators have high internal density, can withstand high pressure, and demonstrate excellent elastic deformation. They offer high pressure resistance, large displacement capacity, vibration and noise reduction, and easy installation. They are used in water supply and drainage, HVAC, firefighting, compressors, papermaking, pharmaceuticals, marine, pumps, and fans. Rubber materials vary depending on the medium and operating conditions, including SBR, butyl, EPDM, nitrile, and silicone, providing heat, acid, alkali, corrosion, wear, or oil resistance.
Sleeve-type compensators are simple and easy-to-install devices. They consist of two pipe sections with a flexible filler sealing the gap, fastened by gland, and connected to pipelines via flanges. They mainly compensate for thermal stress caused by temperature changes, protecting pipelines from damage.
Key parameters include compensation capacity and friction. Total required compensation is calculated based on pipeline conditions and distributed among multiple compensators. Flexible graphite rings are often used as seals, providing high strength, low friction, durability, effective sealing, and easy maintenance. If seals wear out, tightening the flange or replacing the ring restores sealing performance and extends service life.
Rotary compensators are a new type of thermal expansion compensation device for thermal pipelines. They include a sealed seat, seal gland, reducing heads, anti-friction centering bearings, sealing materials, and a rotating cylinder. Their main function is to absorb thermal displacement through relative rotation of the cylinder, reducing pipeline stress.
Rotary compensators have five major advantages:
High Performance: Designed to withstand water hammer and sudden temperature and pressure changes.
Easy Design: Stress changes due to medium, flow, temperature, or pressure variations require only friction calculations; layout options are diverse.
Long Life: Lifespan can reach 20 years, more than twice that of bellows compensators.
Rational Structure: Internal thrust is eliminated in the design, optimizing mechanical dynamics.
Large Compensation: Can achieve up to 1800mm, typically one set per 200–500m of pipeline.
The installation and maintenance of expansion joints are critical to ensuring their proper operation. Correct installation and regular maintenance can extend the service life of expansion joints and enhance the safety and reliability of the piping system.
Installation Location: Expansion joints should be installed in appropriate positions within the piping system to effectively absorb pipe expansion, contraction, and mechanical vibration. For example, when installing an expansion joint on a straight section of pipe, it should be positioned close to the fixed supports to minimize pipe displacement.
Installation Orientation: The orientation of the expansion joint should align with the direction of pipe movement to ensure it can effectively absorb expansion and contraction. For example, when installing an axial bellows expansion joint, its axis should coincide with the axis of the pipe.
Installation Gap: Sufficient clearance should be left during installation to allow the expansion joint to expand and contract freely. For example, when installing a sleeve-type compensator, the gap between the sleeve and the pipe should be large enough to prevent friction between them.
Installation Supports: Appropriate supports should be installed to ensure stable operation of the expansion joint. For example, when installing a bellows expansion joint, guide supports should be installed at both ends to prevent displacement during operation.
Regular Inspection: The operational status of the expansion joint should be checked regularly, including the deformation of the bellows and the sealing performance of sealing materials. For example, inspect the bellows for cracks or deformation and check for leaks in the sealing material once a month.
Cleaning and Care: The surface of the expansion joint should be cleaned regularly to remove dust and dirt, ensuring normal operation. For example, clean the surface of the expansion joint quarterly to prevent corrosion caused by dust and dirt.
Replacement of Components: Damaged components, such as bellows or sealing materials, should be replaced promptly to ensure proper operation. For example, if the bellows develops cracks or deformations, it should be replaced immediately to prevent damage to the piping system.
Data Recording: Operational data, including temperature, pressure, and displacement, should be recorded to monitor the performance of the expansion joint. For example, record the temperature, pressure, and displacement of the expansion joint daily to analyze its operating condition and identify potential issues in a timely manner.
In conclusion, expansion joints are essential components of pipeline systems. With their diverse types and outstanding performance, they play a critical role in industrial applications. By absorbing pipeline expansion, contraction, and mechanical vibrations, they ensure safe and stable operation. Proper installation and regular maintenance are fundamental for long-term reliability. Expansion joints not only extend pipeline lifespan but also enhance system efficiency, supporting continuous and safe industrial production.
