Key Specifications / Features
The Sanitary Butterfly Valve Supplier offers a range of high-quality stainless steel butterfly valves designed for precision and reliability in sanitary applications. These valves are crafted from durable stainless steel grades, including SS 304 and SS 316L, as well as EN 1.4301 and EN 1.4404, ensuring corrosion resistance and long-lasting performance. Available in sizes ranging from 1/2 to 12 inches (DN10 to DN300), they are rated for a maximum pressure of 10 bar and feature clamp ends for easy installation and maintenance.
- Model No.: LD-20260105-SPM-06
- Hits: 14
- Categories: Sanitary Piping Materials, Butterfly Valves
- Tags: SS 316L Butterfly Valve, Sanitary Butterfly Valves, SS 304 Butterfly Valve
Detail Information

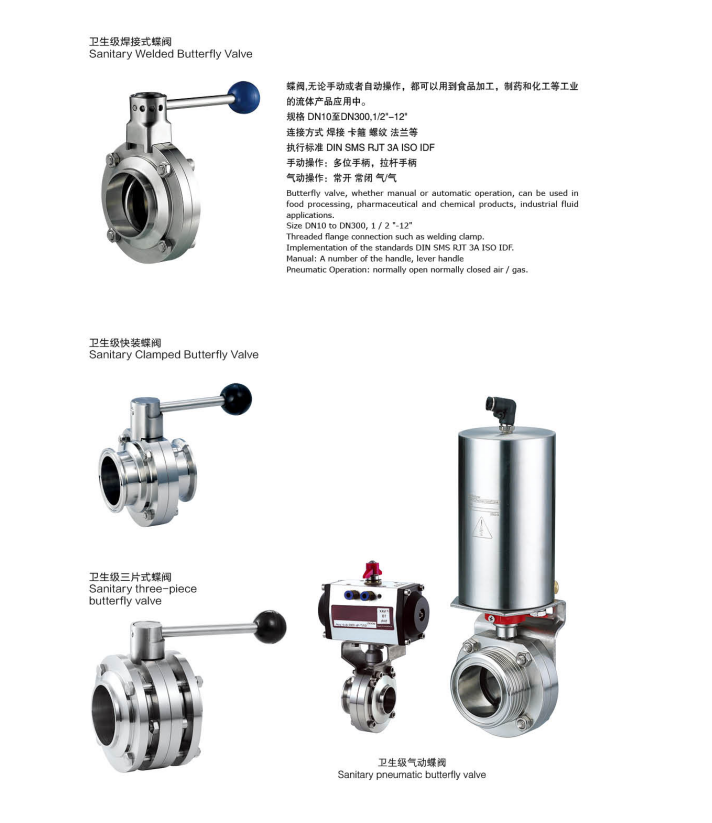

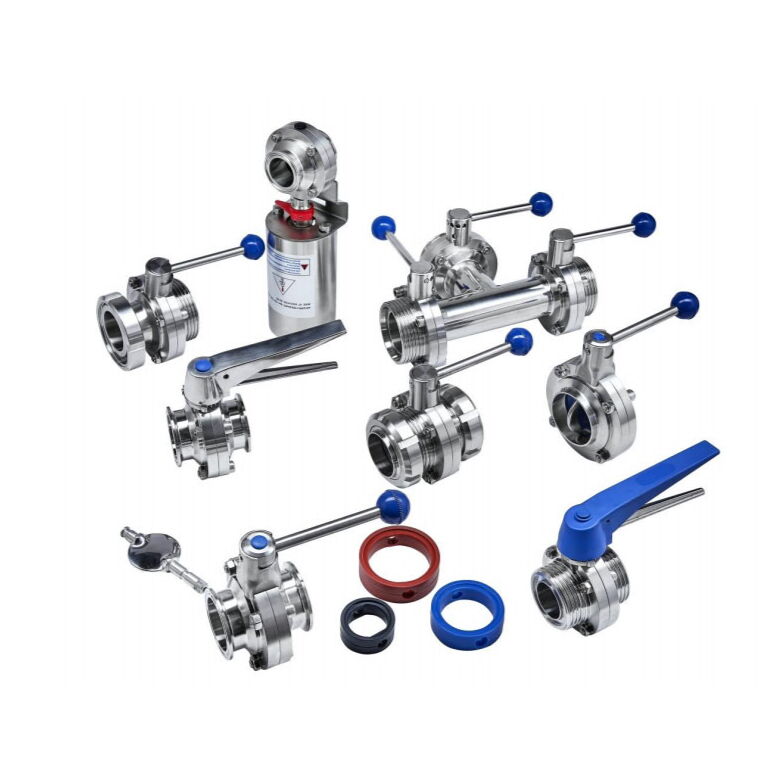

Product Name: Sanitary Butterfly Valve, Stainless Steel
Valve Sizes: 1/2–12 Inch (DN10–DN300)
Standards: DIN, SMS, ISO, IDF, RJT, DS
Materials:
ASTM: SS 304 / SS 316L
DIN: EN 1.4301 / EN 1.4404
Working Pressure: 10 bar
Working Temperature: Up to 130°C
Connection Ends: Welding, Thread, Clamp, Flange
Applications: Milk, Juice, Beer, Beverage, Pharmacy, etc
