In modern industry, steel pipes are ubiquitous, from the scaffolding of high-rise buildings to the drive shafts of automobiles, from oil transportation pipelines to precision mechanical parts. With their unique properties and extensive applications, steel pipes have become an indispensable material. Seamless steel pipes and welded steel pipes, as the two major types of steel pipes, each have distinct characteristics, manufacturing processes, and application scenarios. Today, let's delve into the mysteries of these two types of steel pipes to help you better understand their unique value in the industrial field.

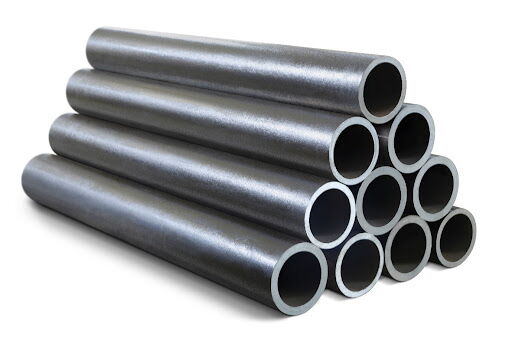

Seamless steel pipe is a long, hollow steel material without any seams around its body. This unique structure gives seamless steel pipes significant advantages in fluid transportation and the manufacturing of structural components. The uniform wall thickness and absence of joints ensure that seamless steel pipes perform exceptionally well under high pressure and high-intensity mechanical stress. They are widely used in fluid transportation pipelines for oil, natural gas, water, and in the manufacturing of structural components such as automotive drive shafts, bicycle frames, and steel scaffolding in construction.
The manufacturing process of seamless steel pipes is relatively complex and includes the following steps: smelting, ingot casting, rolling, sawing, peeling, piercing, annealing, acid washing, greasing, cold drawing, end cutting, acid washing, and warehousing. This series of processes ensures the high quality and superior performance of seamless steel pipes.
Smelting: The first step in manufacturing seamless steel pipes is smelting, where raw materials such as iron ore are converted into pure molten steel through high-temperature melting.
Ingot Casting: The molten steel is poured into molds and cooled to form ingots.
Rolling: The ingots are heated and rolled to achieve a specific shape and size.
Sawing: The rolled steel is cut into appropriate lengths.
Peeling: The surface oxide scale and impurities are removed from the steel.
Piercing: The steel is pierced to form a hollow tube blank.
Annealing: The steel is annealed to reduce its hardness and improve its machinability.
Acid Washing: The surface oxide layer and impurities are removed from the steel.
Greasing: A protective layer is applied to the steel surface to prevent oxidation.
Cold Drawing: The steel pipe is cold drawn to further improve its precision and surface quality.
End Cutting: The ends of the steel pipe are cut neatly.
Acid Washing: The steel pipe is acid washed again to ensure its surface cleanliness.
Warehousing: After strict quality inspection, the qualified seamless steel pipes are packaged and stored in the warehouse, ready for delivery to customers.
The main characteristics of seamless steel pipes can be understood from the following aspects:
Wall Thickness and Economic Efficiency: The thicker the wall of a seamless steel pipe, the higher its economic and practical value. This is because thick-walled seamless steel pipes perform well under high pressure and high-intensity mechanical stress, effectively reducing material waste.
Precision and Surface Quality: The precision of seamless steel pipes is generally low, with possible uneven wall thickness and relatively low brightness on the inner and outer surfaces. This is mainly due to the limitations of the manufacturing process, which can sometimes result in defects such as pitting and black spots on the surfaces that are difficult to remove.
Inspection and Shaping: The inspection and shaping of seamless steel pipes must be done offline, which increases production costs and time.
High Pressure and High Strength Applications: Seamless steel pipes have significant advantages in high-pressure, high-strength, and mechanical structural applications, making them widely used in engineering fields with high strength and reliability requirements.

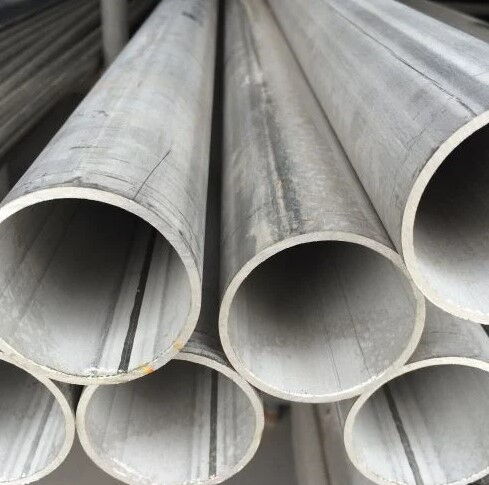

Welded steel pipe, also known as welded tube, is made by rolling steel plates or steel strips into shape and then welding them. The manufacturing process of welded steel pipes is relatively simple, with high production efficiency, a wide variety of specifications, and lower equipment investment. Although the strength of welded steel pipes is generally lower than that of seamless steel pipes, with the continuous improvement of welding and inspection technologies, the performance of welded steel pipes has been significantly enhanced and is increasingly replacing seamless steel pipes in many fields.
The manufacturing process of welded steel pipes mainly includes the following steps: steel plate selection, slitting, forming, welding, induction bright annealing, weld seam treatment, shaping, sizing, eddy current testing, laser measurement, acid washing, and warehousing. This series of processes ensures the high quality and superior performance of welded steel pipes.
Steel Plate Selection: Appropriate steel plates are chosen as raw materials.
Slitting: The steel plates are cut to the desired width.
Forming: The steel plates are rolled into a tubular shape.
Welding: The joints of the tubular shape are welded together using welding processes.
Induction Bright Annealing: The steel pipe is heat treated to improve its strength and toughness.
Weld Seam Treatment: The weld seams are treated to ensure their quality.
Shaping: The steel pipe is shaped to achieve the specified dimensions and form.
Sizing: The steel pipe is sized to ensure dimensional accuracy.
Eddy Current Testing: Eddy current testing technology is used to detect internal defects in the steel pipe.
Laser Measurement: Laser measurement technology is used to accurately measure the diameter of the steel pipe.
Acid Washing: The surface oxide layer and impurities are removed from the steel pipe.
Warehousing: After strict quality inspection, the qualified welded steel pipes are packaged and stored in the warehouse, ready for delivery to customers.
The main characteristics of welded steel pipes can be understood from the following aspects:
Production Efficiency and Economic Efficiency: Welded steel pipes are produced continuously online. The thicker the wall, the higher the investment in the production line and welding equipment, which can affect economic and practical value. Thin-walled welded steel pipes have a higher input-output ratio and better economic efficiency.
Precision and Surface Quality: Welded steel pipes have high precision, uniform wall thickness, and high brightness on the inner and outer surfaces, allowing for arbitrary sizing. This makes welded steel pipes more aesthetically pleasing and economical for high-precision, medium and low-pressure fluid applications.
Thermal Insulation and Corrosion Resistance: Welded steel pipes have good thermal insulation properties with low heat loss, only 25%, which is beneficial for transportation and cost reduction. They also have waterproof and corrosion-resistant characteristics, allowing them to be buried directly underground or underwater, reducing the difficulty of engineering construction.
Impact Resistance: Welded steel pipes maintain good impact resistance in low-temperature environments and do not get damaged, making them suitable for use in harsh conditions.

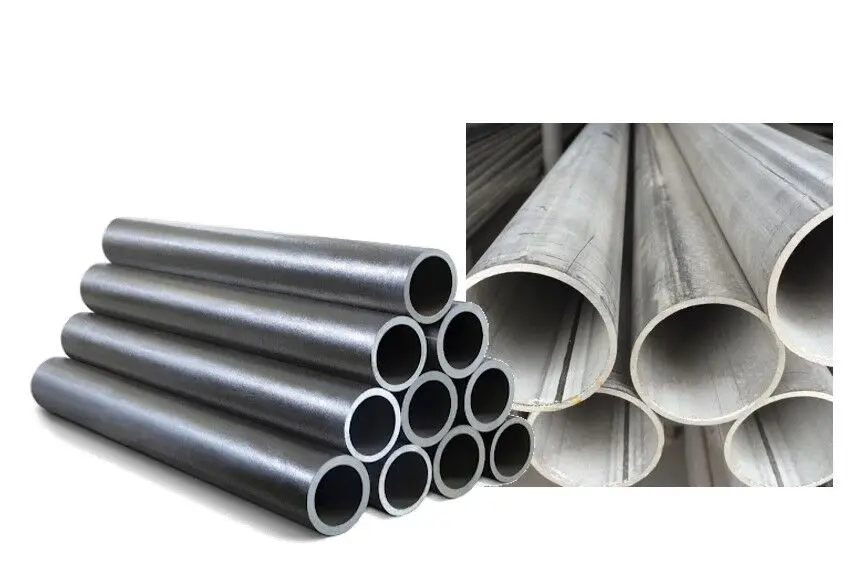

Although both seamless and welded steel pipes are types of steel pipes, their different manufacturing processes and structures result in significant differences in performance. The following is a detailed comparison of their performances:
Seamless Steel Pipe: Seamless steel pipes have higher strength and load-carrying capacity, especially under high pressure and high-intensity mechanical stress. Since seamless steel pipes have no joints, they do not experience issues such as weld seam cracking when under pressure.
Welded Steel Pipe: The strength of welded steel pipes is generally lower than that of seamless steel pipes, but it is sufficient for medium and low-pressure fluid transportation and the manufacturing of mechanical parts. The load-carrying capacity of welded steel pipes mainly depends on the quality of the weld seams and the manufacturing process.
Seamless Steel Pipe: Seamless steel pipes have lower precision, with possible uneven wall thickness and relatively low brightness on the inner and outer surfaces. This is mainly due to the limitations of the manufacturing process.
Welded Steel Pipe: Welded steel pipes have high precision, uniform wall thickness, and high brightness on the inner and outer surfaces. This gives welded steel pipes an advantage in applications with high precision requirements.
Seamless Steel Pipe: Seamless steel pipes have average thermal insulation properties with relatively higher heat loss. Their corrosion resistance is also relatively low, requiring additional anti-corrosion treatment.
Welded Steel Pipe: Welded steel pipes have good thermal insulation properties with low heat loss, only 25%. They also have waterproof and corrosion-resistant characteristics, allowing them to be buried directly underground or underwater, reducing the difficulty of engineering construction.
Seamless Steel Pipe: Seamless steel pipes maintain good impact resistance in low-temperature environments and do not get damaged.
Welded Steel Pipe: Welded steel pipes also have good impact resistance in low-temperature environments, but their impact resistance mainly depends on the quality of the weld seams and the manufacturing process.
Due to their different performance characteristics, seamless and welded steel pipes play important roles in different application fields. The following is a detailed analysis of their application fields:
Seamless steel pipes are widely used in the following fields:
Fluid Transportation: Seamless steel pipes are ideal materials for transporting fluids such as oil, natural gas, and water. Their high strength and good sealing properties ensure the safe transportation of fluids.
Mechanical Manufacturing: Seamless steel pipes are used to manufacture mechanical parts such as oil drill pipes, automotive drive shafts, and bicycle frames. These parts require high strength and the seamless structure of seamless steel pipes makes them ideal choices.
Construction: Seamless steel pipes are widely used in steel scaffolding in construction. Their high strength and stability ensure the safety of the construction process.
High-Pressure Vessels: Seamless steel pipes are used to manufacture high-pressure vessels such as locomotive boiler pressure vessels, boiling water pipes, and superheated steam pipes. These devices require high pressure resistance, and the high strength and seamless structure of seamless steel pipes make them ideal choices.
Welded steel pipes are widely used in the following fields:
Fluid Transportation: Welded steel pipes are used for transporting medium and low-pressure fluids such as water and gas. Their good sealing properties and economic efficiency make them ideal materials.
Mechanical Manufacturing: Welded steel pipes are used to manufacture some medium and low-pressure mechanical parts such as automotive drive shafts and bicycle frames. These parts have high precision and surface quality requirements, and the high precision and good surface quality of welded steel pipes make them ideal choices.
Construction: Welded steel pipes are widely used in steel scaffolding in construction. Their high strength and stability ensure the safety of the construction process.
Decorative Uses: Welded steel pipes have high surface quality and good aesthetic properties, making them widely used in decorative applications such as railings and handrails.
The choice between seamless and welded steel pipes mainly depends on specific usage requirements. The following are some suggestions for making a choice:
Strength Requirements: If the application requires high pressure and high-intensity mechanical stress, seamless steel pipes are a better choice. If the application is mainly for medium and low-pressure fluid transportation or the manufacturing of mechanical parts, welded steel pipes can meet the requirements.
Precision Requirements: If the application has high precision and surface quality requirements, welded steel pipes are a better choice. Seamless steel pipes have lower precision and are suitable for applications with lower precision requirements.
Cost Considerations: Welded steel pipes have high production efficiency and lower equipment investment, making them more advantageous in cost-sensitive applications. Seamless steel pipes have a complex manufacturing process and higher costs, but they are necessary in applications with high strength and reliability requirements.
Environmental Requirements: If the application environment is harsh, such as requiring burial underground or underwater, the waterproof and corrosion-resistant characteristics of welded steel pipes make them a better choice. Seamless steel pipes require additional anti-corrosion treatment to be used in these environments.
Seamless steel pipes and welded steel pipes, as indispensable materials in modern industry, each have unique properties and a wide range of applications. Seamless steel pipes, with their high strength, seamless structure, and good sealing properties, play an important role in high-pressure fluid transportation and mechanical manufacturing. Welded steel pipes, with their high precision, good surface quality, and economic efficiency, perform well in medium and low-pressure fluid transportation and the manufacturing of mechanical parts. When choosing between seamless and welded steel pipes, it is necessary to make a comprehensive judgment based on specific usage requirements, strength requirements, precision requirements, cost considerations, and environmental requirements. It is hoped that the introduction in this article can help you better understand the characteristics and applications of seamless and welded steel pipes, and thus make a more appropriate choice.
